Powermatic Lathe 4224B

By Robert Robillard on Uncategorized

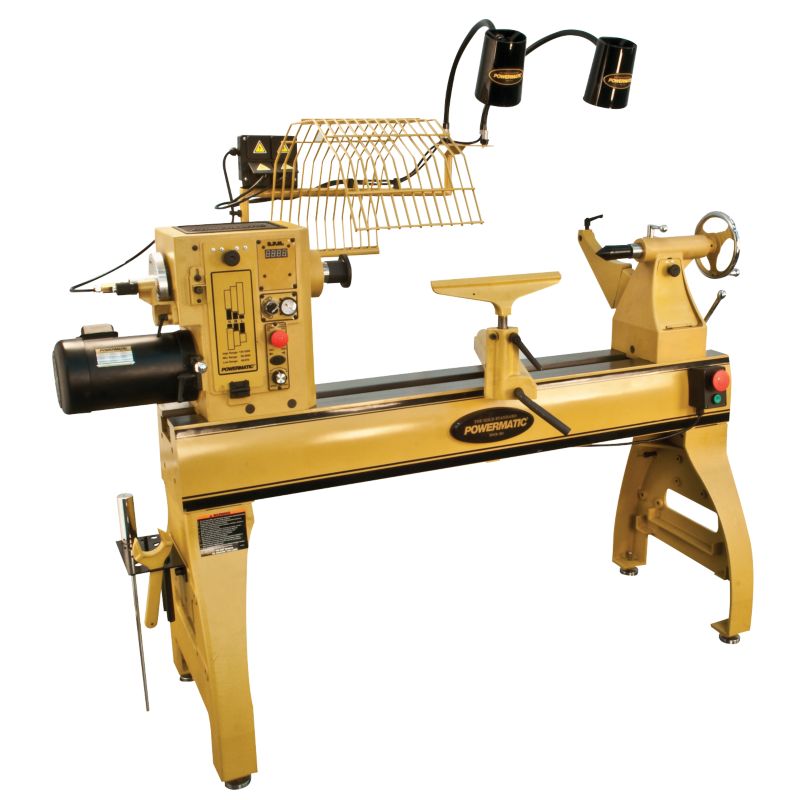

Powermatic Wood Lathe Model 4224B



The Powermatic 4224B just released is quirte possibly the most innovative and durablewood lathe Powermatic has made yet.

Designed to accomplish  any woodturning task, from custom balusters to decorative table legs easily and efficiently.

The Powermatic Lathe 4224B weighs 950 lbs., and has heavy cast iron headstock, tailstock and sturdy legs.  Each leg has a 2”-diameter adjustable feet for leveling.

A 42” working distance between centers and a 24-in swing over the bed allows more capacity and the bedway allows smooth sliding of the tail stock and tool rest. The headstock slides the full length of the bed,  for easier outboard turning. Dual positive cam-action locking devices on the headstock ensure that it remains stable during use.

Additional Features:

  • 3 Horse Power TEFC, 3PH, 220V motor with an inverter allowing incoming power to be single phase
  • Variable speeds ranging from 40 to 3500 rpm.
  • Control panel with a digital spindle readout:  shows the exact rpm for adjustment and fine-tuning.
  • On/off switch with a magnetic base can be moved anywhere on the machine.
  • Built in 98-position indexing
  • Open access eliminates the need to remove the headstock cover to change settings.
  • Forward and reverse rotation
  • Venturi built into the headstock with a fully integrated vacuum system
  • A comparator system provides a mount for pieces being duplicated, so they are within easy reach for measurement and visual comparison.
  • Spindle lock that is engaged by pressing a button on the front of the headstock when attaching or removing work pieces.
  •  14” cast iron tool rest
  • Two built-in 100 watt task lamps
  • Four 115V electric outlets are provided to plug-in auxiliary power tools.

Accessories include both a 20” and 63” extension bed. The 20” extension bed kit provides a total capacity of 62”, a swing away function and an elevating assist. The 63” extension bed provides a total capacity of 105”. Cast iron legs with levelers ensure sturdy support.

For more information on the Powermatic 4224B Lathe (1794224K, $7,499.99), Powermatic 4224B 20” Extension Bed Kit (6294900, $1,472.00) and Powermatic 4224B 63” Extension Bed (6294904, $2,753.00), or to find a local dealer, visit powermatic.com.
