How To Install A Copper Gutter

Today’s job was to remove a rotted wood gutter and install a 16 gauge, 5″ half-round copper gutter with a downspout directed to an underground drain pipe .

Removing The Old Gutter

The gutter we removed was just a short piece of wood gutter that ran longer than the roof and did not have an end cap. The original theory behind this was to carry rain off the roof and shoot it into the adjacent planting bed.

Installing A Copper Gutter

Fix Trim

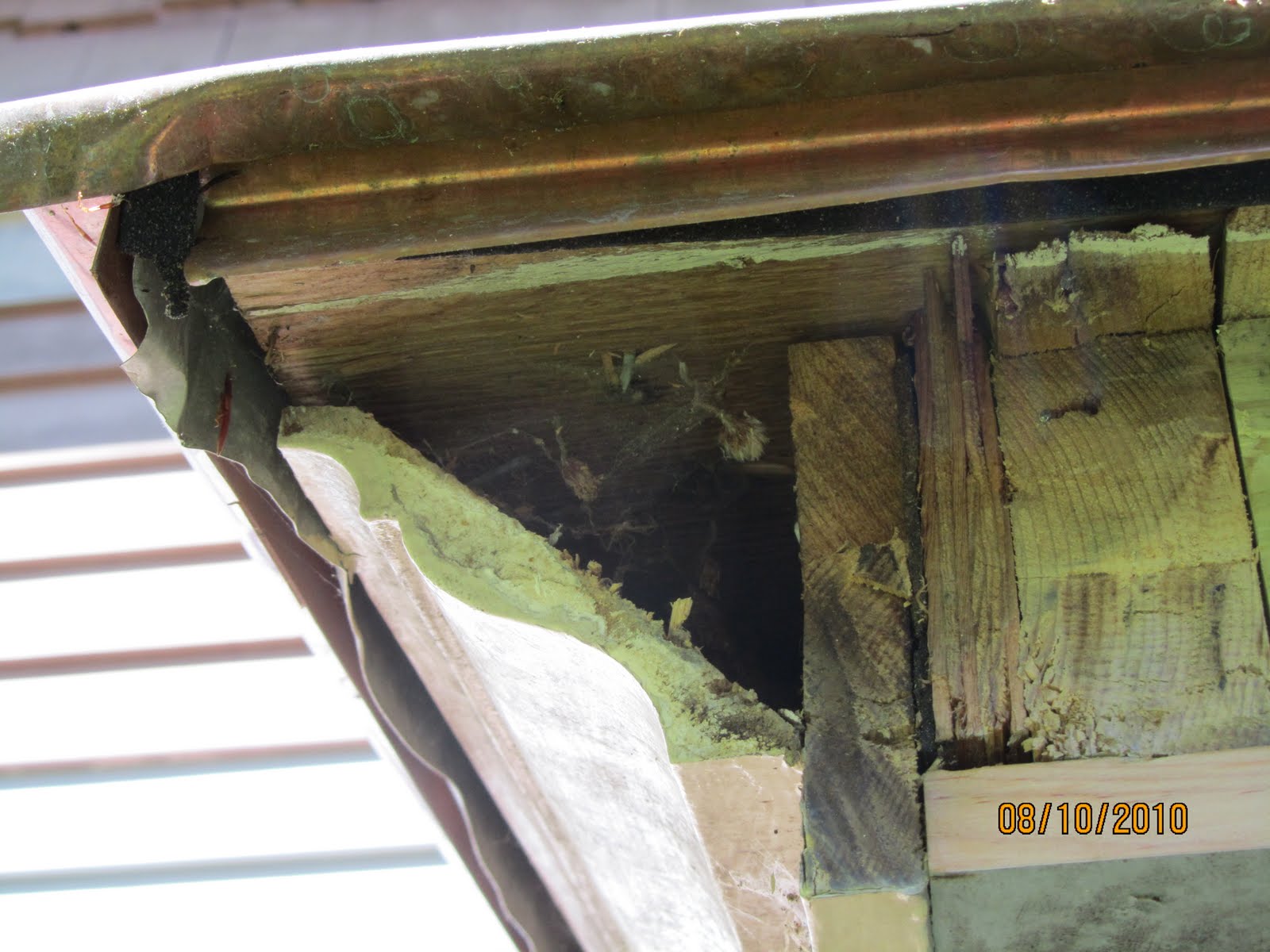

The old wood gutter had a crack in it which resulted in trim and framing rot. I installed a new cedar fascia board. We back primed the board and installed it with stainless steel nails.

Photo below. The porch has crown molding on the rake side. This molding terminated a the fascia. Our new fascia had to be cut to match this crown molding.

Installing A Copper Gutter

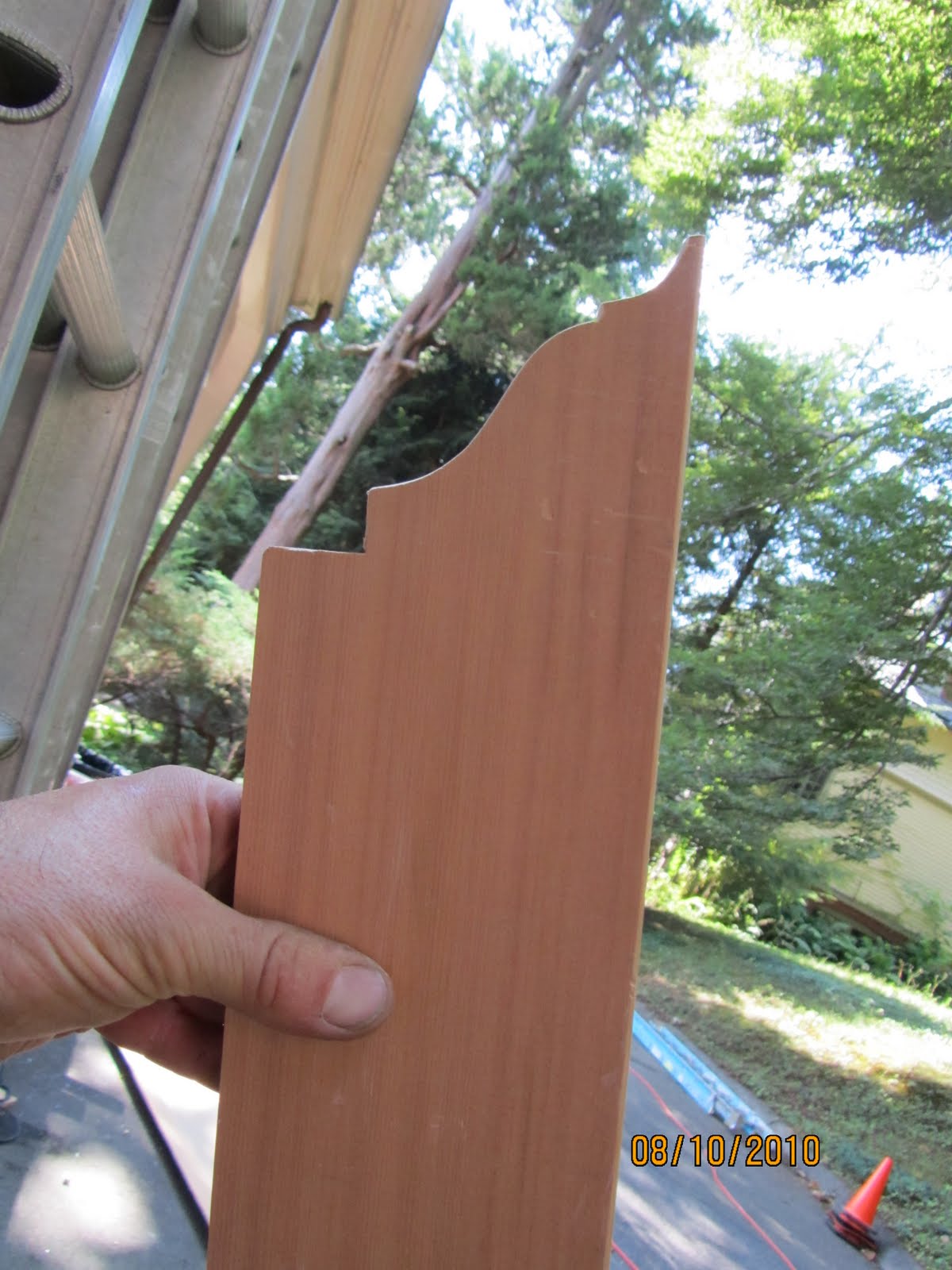

Below: Cedar board scribed and cut to match the crown molding profile.

Installing A Copper Gutter

Once we cut the copper gutter to length we attached the end caps with copper rivets and lead solder.

Installing A Copper Gutter

Rivets and Solder Make BEST Connection

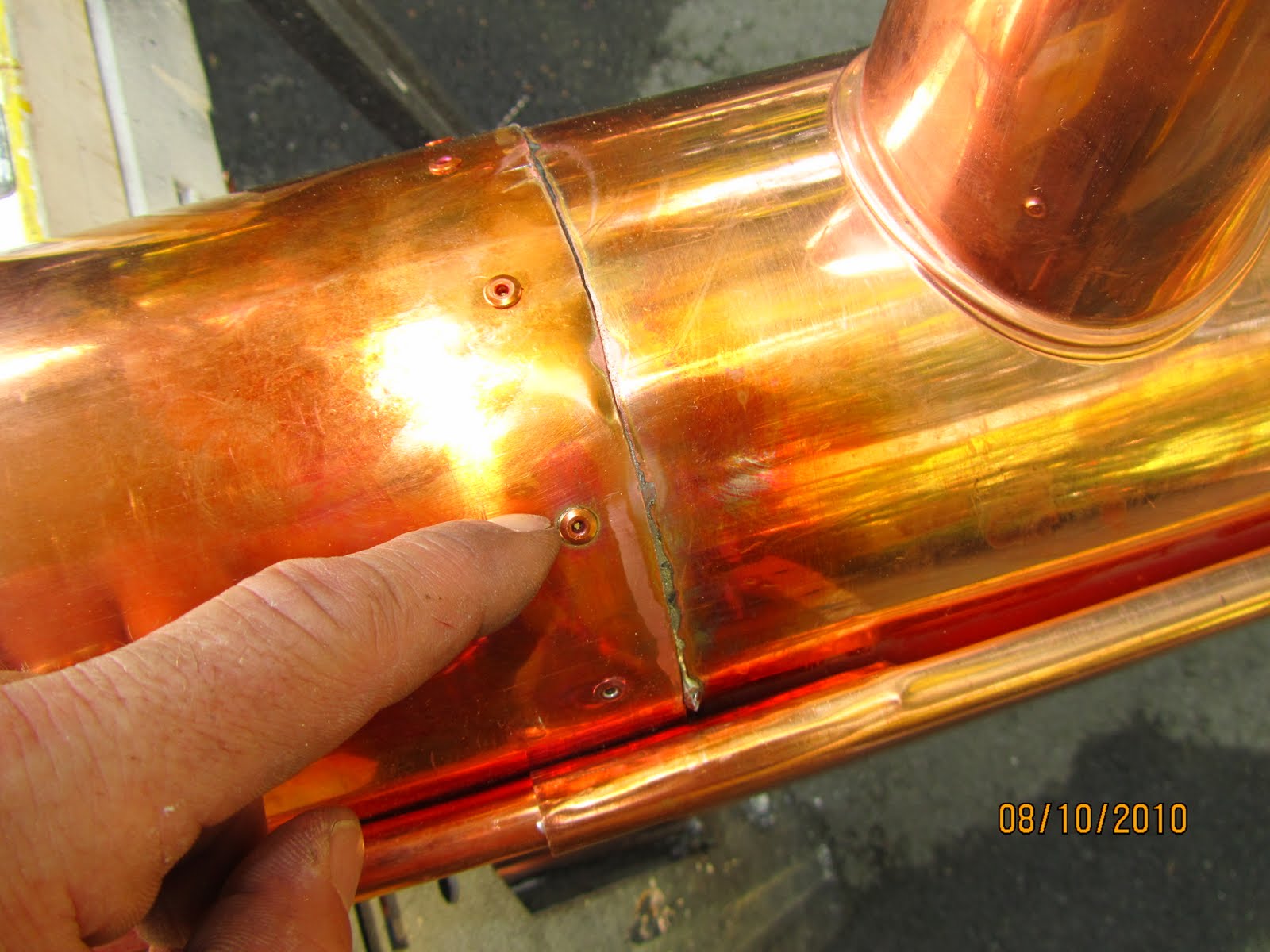

The outlet section for the gutter comes separate and need to be attached in order to connect a downspout. This too was connected with copper rivets.

Installing A Copper Gutter

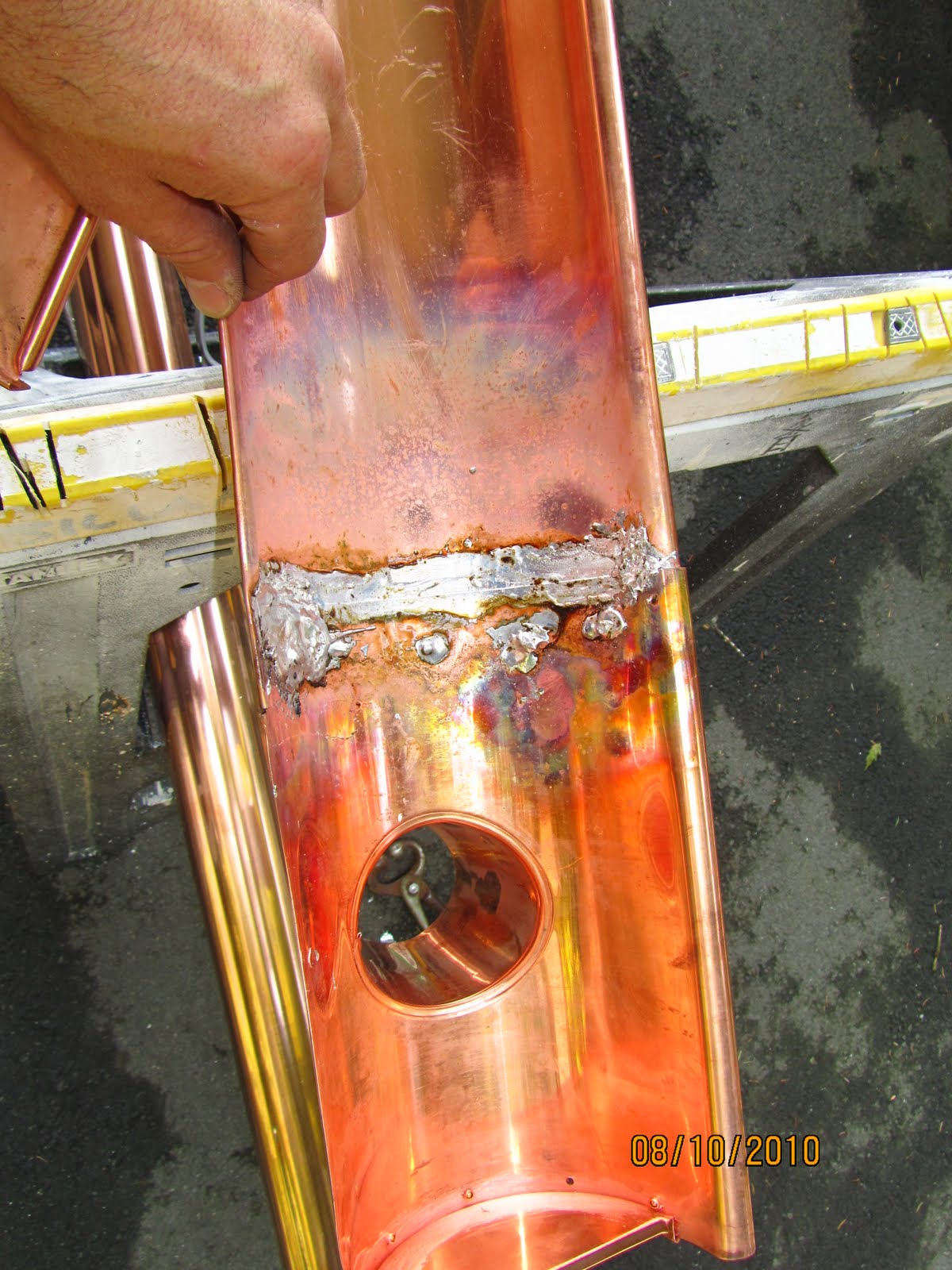

and then soldered with lead solder.

Installing A Copper Gutter

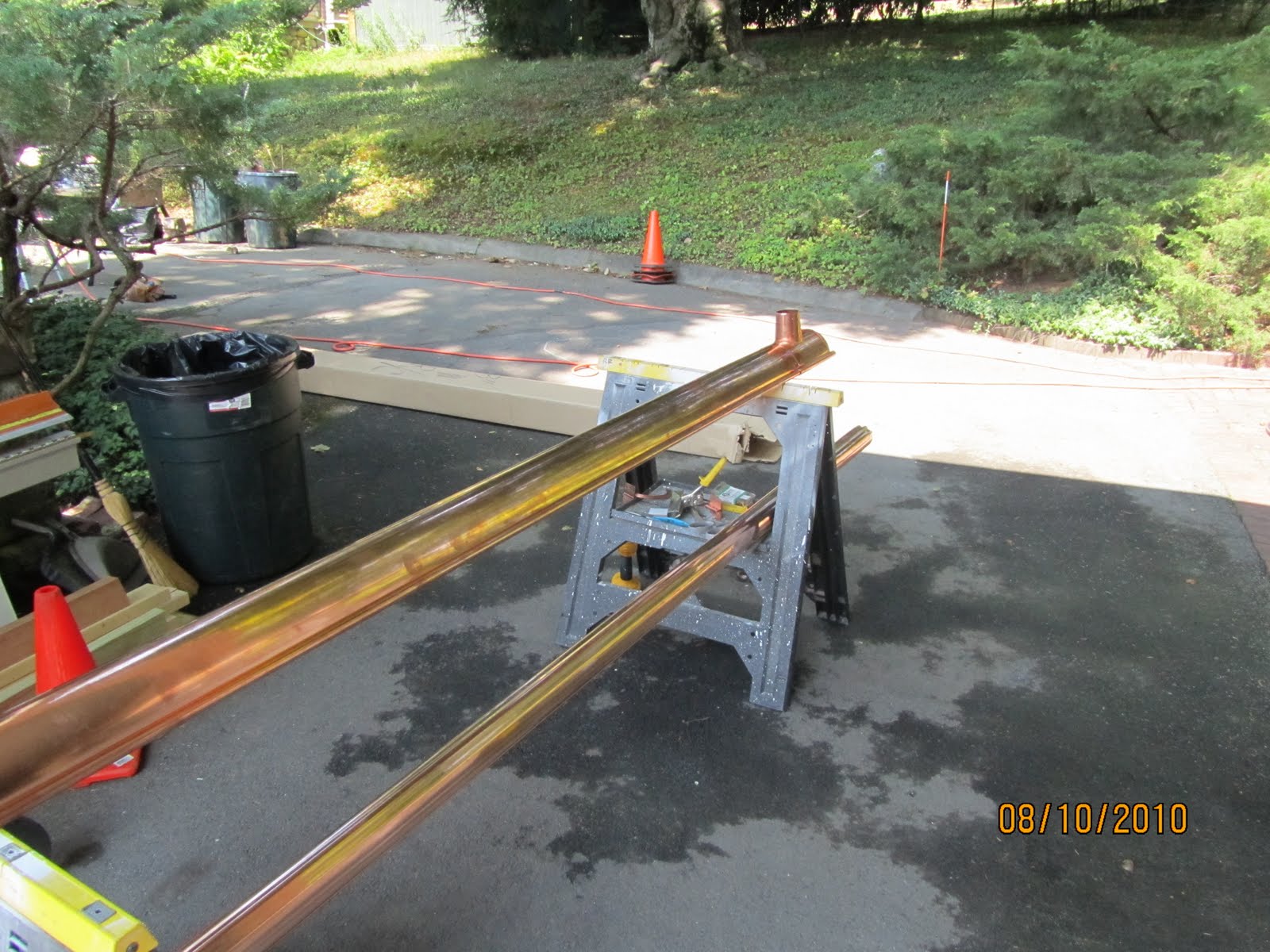

Original ten foot Length of copper gutter before cutting to size.


Installing A Copper Gutter

Install Hangers

5″ Copper shank and circle hangers were used to hang and secure this copper gutter. Note the crown molding profile on the cedar fascia board.

Installing A Copper Gutter

Install Down Spouts

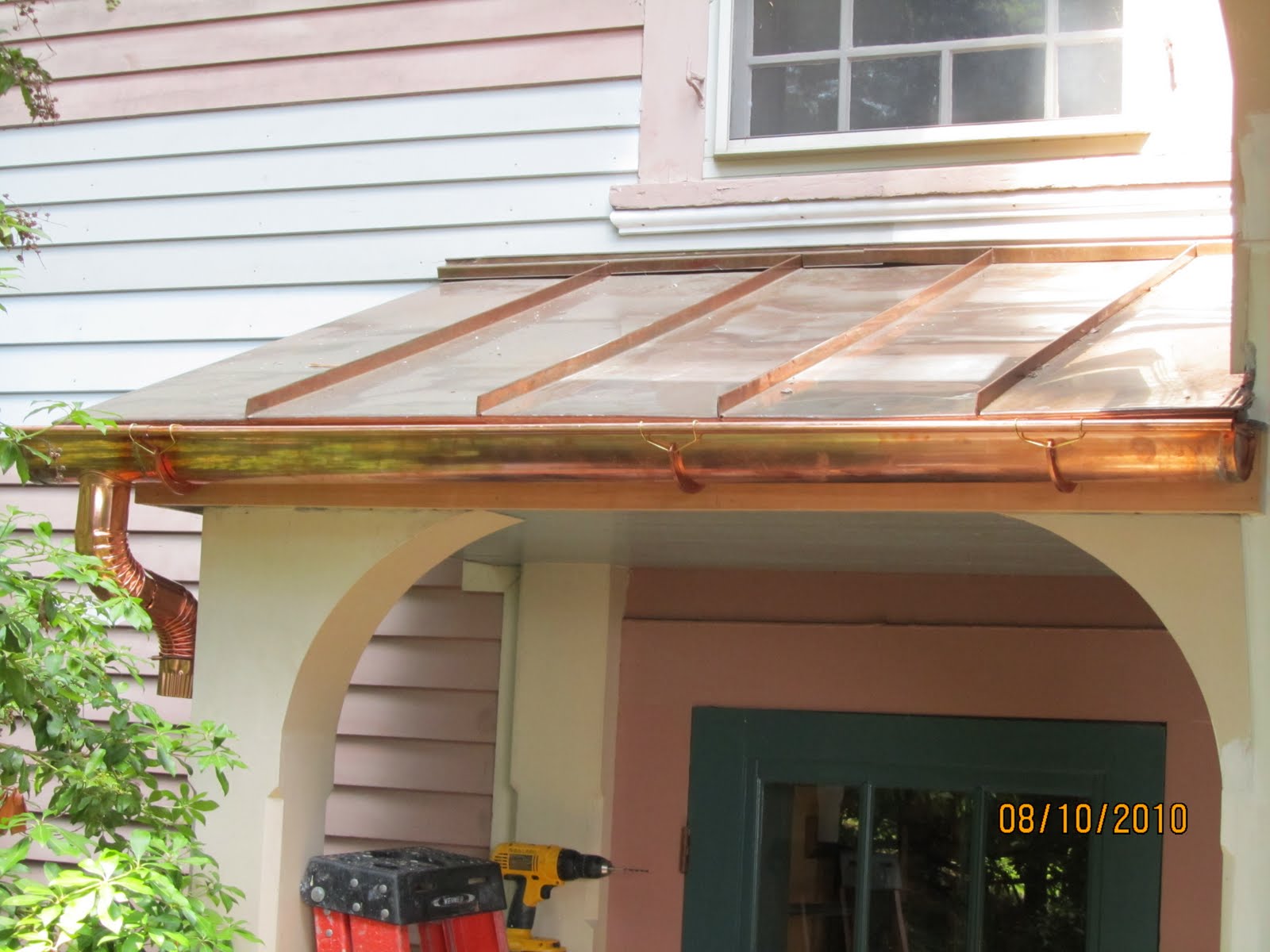

Copper gutter in place with downspout and elbows.

Installing A Copper Gutter

Front view of copper gutter system. Still waiting to install the downspout pipe. [left]

Installing A Copper Gutter
